1,2,4,5-四溴苯(636-28-2)質(zhì)譜(MS)
InChI:InChI=1S/C6H2Br4/c7-3-1-4(8)6(10)2-5(3)9/h1-2H
InChIKey: QCKHVNQHBOGZER-UHFFFAOYSA-N

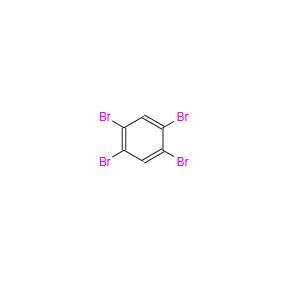

Smiles:C1(Br)=CC(Br)=C(Br)C=C1Br
-

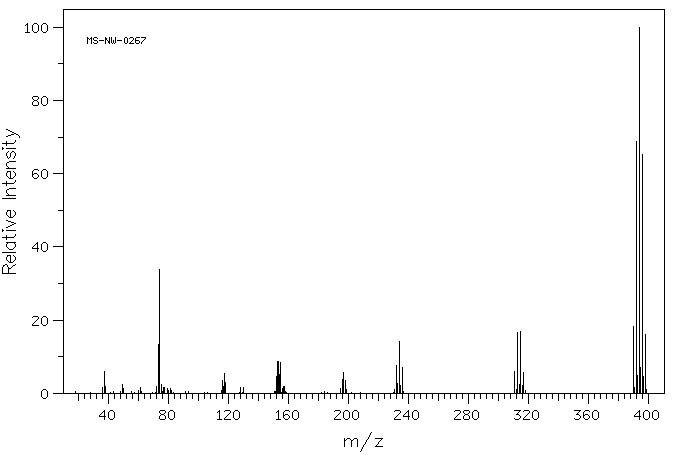

Mass
MS-NW-0267
1,2,4,5-tetrabromobenzene
C6H2Br4 (Mass of molecular ion: 390)
Source Temperature: 180 °C
Sample Temperature: 0 °C
Direct, 75 eV
36.0 1.5
37.0 5.9
38.0 1.9
49.0 2.3
50.0 1.3
61.0 1.5
72.0 1.8
73.0 13.3
74.0 33.8
75.0 2.4
76.5 1.6
77.5 1.7
79.0 1.4
81.0 1.4
116.0 3.4
116.5 1.8
117.0 5.5
117.5 1.1
118.0 3.1
128.0 1.6
130.0 1.5
152.0 4.6
153.0 8.8
154.0 5.1
155.0 8.5
156.0 1.3
156.5 2.0
157.0 1.0
157.5 1.8
195.0 1.2
196.0 3.7
197.0 5.6
198.0 3.5
199.0 1.0
231.0 1.0
232.0 7.5
233.0 2.6
234.0 14.2
235.0 2.2
236.0 7.2
311.0 5.9
312.0 1.1
313.0 16.7
314.0 2.3
315.0 16.8
316.0 2.1
317.0 5.7
390.0 18.2
391.0 1.5
392.0 68.7
393.0 4.9
394.0 100.0
395.0 7.0
396.0 65.2
397.0 4.5
398.0 16.0
399.0 1.1
-
| 1H NMR |
300 MHz |
| C6 H2 Br4
|
0.038 g : 0.5 ml CDCl3
|
| 1,2,4,5-tetrabromobenzene
|
 |
Parameter ppm Hz
D(A) 7.862
|
Hz ppm Int.
2358.60 7.862 1000
