3,3'-二氯-N,N'-二-(4-甲氧基苯亞甲基)聯(lián)苯胺(3540-78-1)紅外圖譜(IR2)

產(chǎn)品名稱:3,3'-二氯-N,N'-二-(4-甲氧基苯亞甲基)聯(lián)苯胺

分子式:C28H22Cl2N2O2

分子量: 489.39

InChI:InChI=1S/C28H22Cl2N2O2/c1-33-23-9-3-19(4-10-23)17-31-27-13-7-21(15-25(27)29)22-8-14-28(26(30)16-22)32-18-20-5-11-24(34-2)12-6-20/h3-18H,1-2H3

InChIKey: JWTLKDNURNVSBN-UHFFFAOYSA-N

Smiles:C1(C2=CC=C(N=CC3=CC=C(OC)C=C3)C(Cl)=C2)=CC=C(N=CC2=CC=C(OC)C=C2)C(Cl)=C1

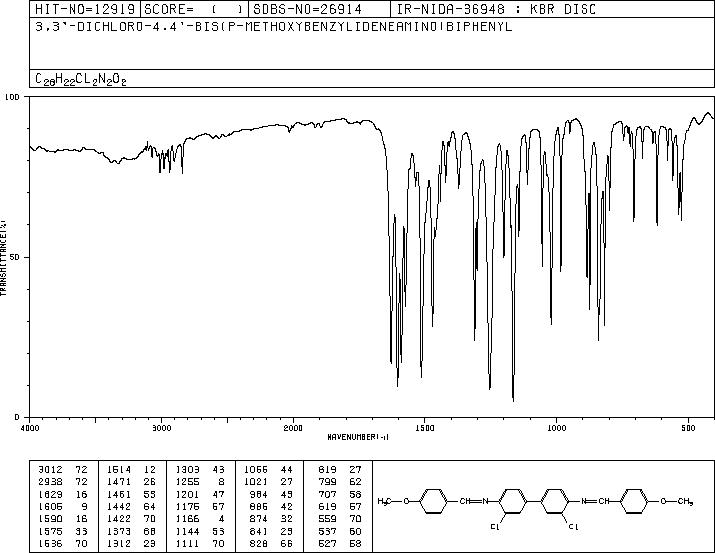

IR1

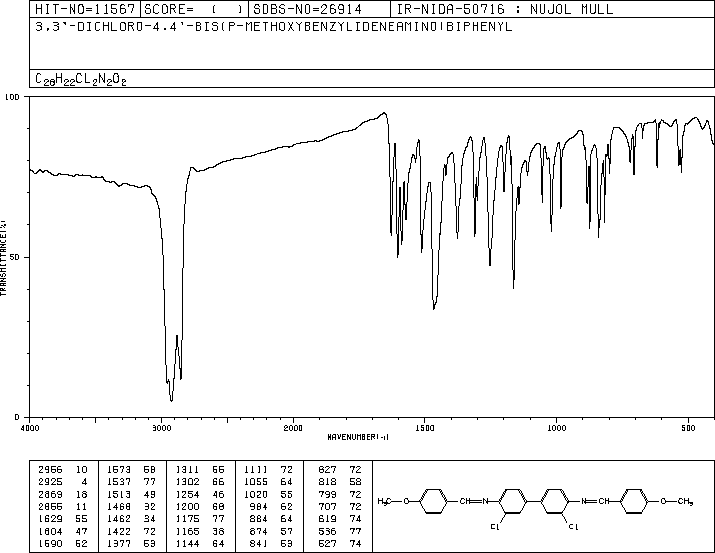

IR2

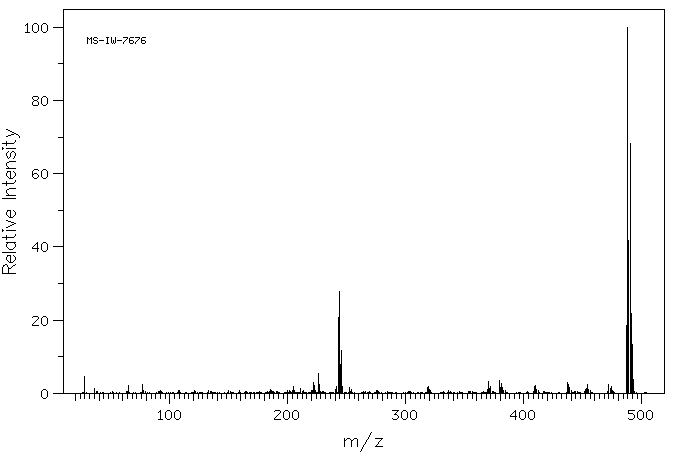

Mass

MS-IW-7676
3,3'-dichloro-N,N'-bis(4-methoxybenzylidene)-4,4'-biphenyldiamine
C28H22Cl2N2O2       (Mass of molecular ion:    488)

   Source Temperature: 190 °C
   Sample Temperature: 250 °C
   Direct, 75 eV

      28.0       4.5
      36.0       1.4
      65.0       2.1
      77.0       2.4
     185.0       1.0
     204.5       2.0
     211.0       1.3
     221.5       3.0
     222.0       1.9
     222.5       2.1
     226.0       5.3
     227.0       2.3
     240.0       1.1
     241.0       1.8
     243.0      20.7
     243.5       7.9
     244.0      27.8
     244.5       7.8
     245.0      11.8
     245.5       1.8
     246.0       2.0
     252.0       1.7
     254.0       1.0
     318.0       1.7
     319.0       2.0
     320.0       1.1
     369.0       1.1
     370.0       3.2
     371.0       1.3
     372.0       2.0
     379.0       3.6
     380.0       1.5
     381.0       2.8
     382.0       1.6
     409.0       1.9
     410.0       2.1
     411.0       1.1
     437.0       3.0
     438.0       2.5
     439.0       1.5
     452.0       1.0
     453.0       1.4
     454.0       2.3
     455.0       1.1
     472.0       2.4
     473.0       1.4
     474.0       1.8
     487.0      18.6
     488.0     100.0
     489.0      41.8
     490.0      68.2
     491.0      21.9
     492.0      13.3
     493.0       3.7

KBr disc
