ChemicalBook
English   Japanese   Germany   Korea
返回ChemicalBook首頁>CAS數(shù)據(jù)庫列表>24860-40-0更多圖譜> 2,4-二氨基-6-異丙氧基-1,3,5-三嗪(24860-40-0)紅外圖譜(IR1)

24860-40-0

2,4-二氨基-6-異丙氧基-1,3,5-三嗪(24860-40-0)紅外圖譜(IR1)

分子式:C6H11N5O

分子量: 169.18

InChI:InChI=1S/C6H11N5O/c1-3(2)12-6-10-4(7)9-5(8)11-6/h3H,1-2H3,(H4,7,8,9,10,11)

InChIKey: ATCQNYLEZRQALQ-UHFFFAOYSA-N

Smiles:N1=C(OC(C)C)N=C(N)N=C1N

  • 圖譜

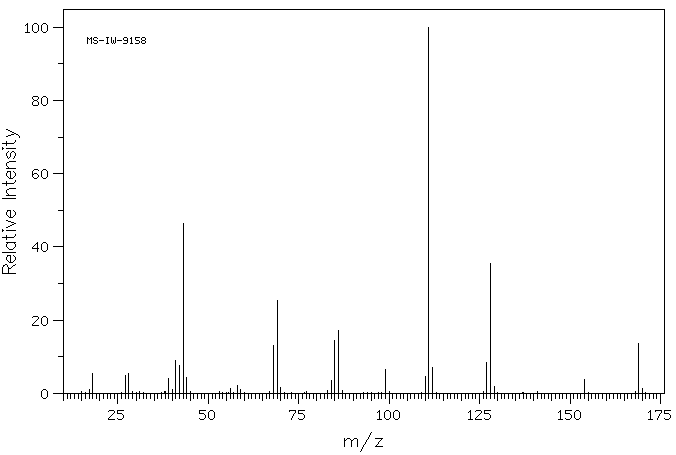

    Mass

    MS-IW-9158
6-isopropoxy-1,3,5-triazine-2,4-diamine
C6H11N5O            (Mass of molecular ion:    169)


       Source Temperature: 170 °C
   Sample Temperature: 120 °C
   Direct, 75 eV


          17.0       1.0
      18.0       5.4
      27.0       5.0
      28.0       5.3
      39.0       4.0
      40.0       1.0
      41.0       9.0
      42.0       7.7
      43.0      46.3
      44.0       4.4
      56.0       1.3
      58.0       2.1
      59.0       1.1
      68.0      13.0
      69.0      25.5
      70.0       1.5
      84.0       3.4
      85.0      14.4
      86.0      17.3
      99.0       6.4
     110.0       4.5
     111.0     100.0
     112.0       7.2
     127.0       8.3
     128.0      35.4
     129.0       1.9
     154.0       3.8
     169.0      13.7
     170.0       1.4

400 MHz in DMSO-d6

  • 圖譜

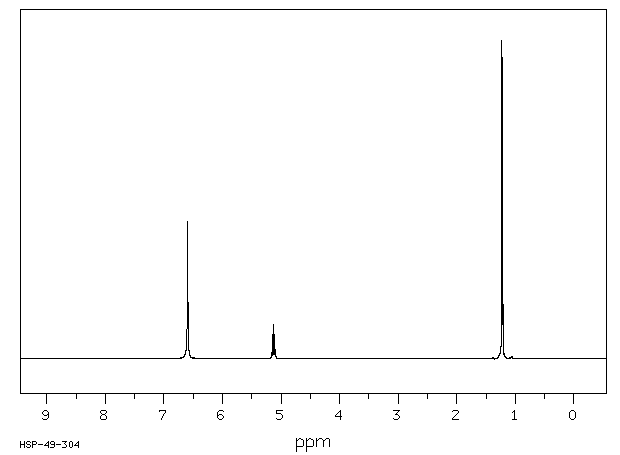

    1H NMR 399.65 MHz
    C6 H11 N5 O 0.039 g : 0.5 ml DMSO-d6
    6-isopropoxy-1,3,5-triazine-2,4-diamine
    ChemicalStructure
        Assign.     Shift(ppm)

      A             6.59
      B             5.121
      C             1.222


         Hz     ppm     Int.


       2635.50   6.595    431
   2059.20   5.153     29
   2052.98   5.137     77
   2046.75   5.122    106
   2040.53   5.106     77
   2034.30   5.091     29
    501.10   1.254     24
    491.33   1.230   1000
    485.11   1.214    948

in DMSO-d6

  • 圖譜

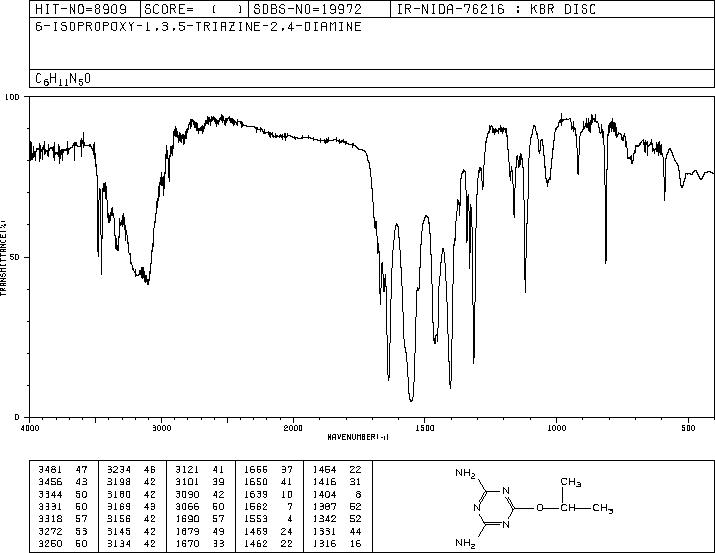

KBr disc

  • 圖譜

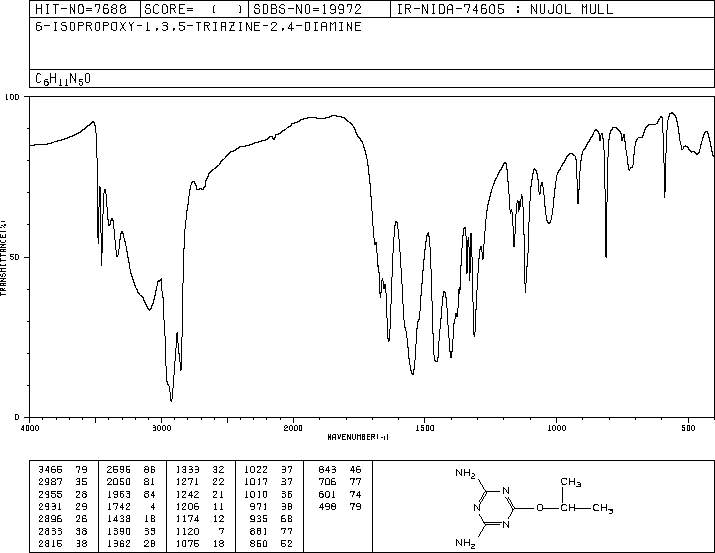

nujol mull

  • 圖譜

×
