103-50-4

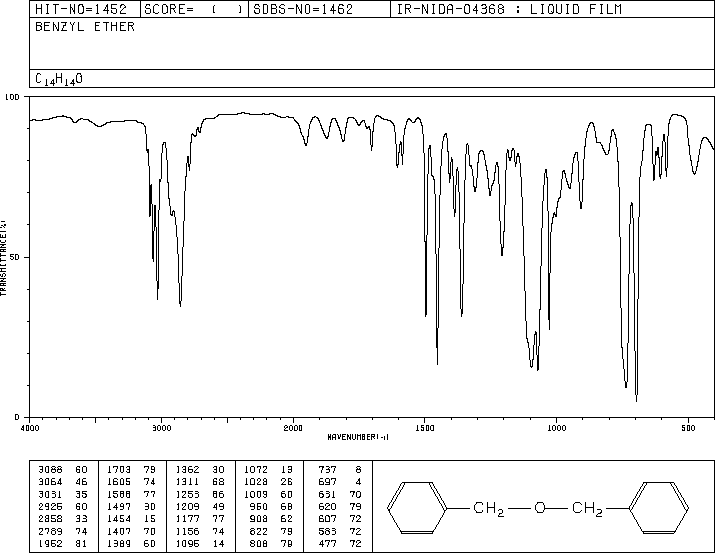

二芐醚(103-50-4)紅外圖譜(IR2)

產品名稱:二芐醚

CAS:103-50-4

分子式:C14H14O

分子量: 198.26

InChI:InChI=1S/C14H14O/c1-3-7-13(8-4-1)11-15-12-14-9-5-2-6-10-14/h1-10H,11-12H2

InChIKey: MHDVGSVTJDSBDK-UHFFFAOYSA-N

Smiles:O(CC1=CC=CC=C1)CC1=CC=CC=C1

  • 圖譜

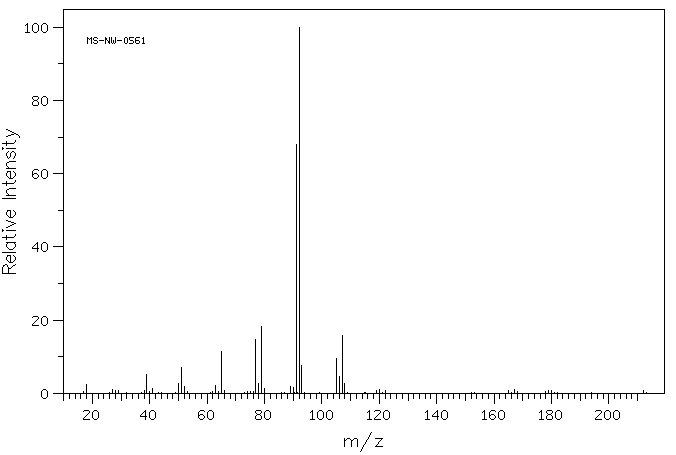

    Mass

    MS-NW-0561
benzyl ether
C14H14O             (Mass of molecular ion:    198)


       Source Temperature: 270 °C
   Sample Temperature: 170 °C
   Reservoir, 75 eV


          18.0       2.4
      27.0       1.1
      39.0       5.1
      41.0       1.3
      50.0       2.7
      51.0       7.1
      52.0       1.9
      63.0       2.2
      65.0      11.3
      77.0      14.6
      78.0       2.7
      79.0      18.4
      80.0       1.2
      89.0       2.0
      90.0       1.7
      91.0      67.9
      92.0     100.0
      93.0       7.6
     105.0       9.6
     106.0       4.7
     107.0      15.7
     108.0       2.7
     120.0       1.0
     167.0       1.0

90 MHz in CDCl3

  • 圖譜

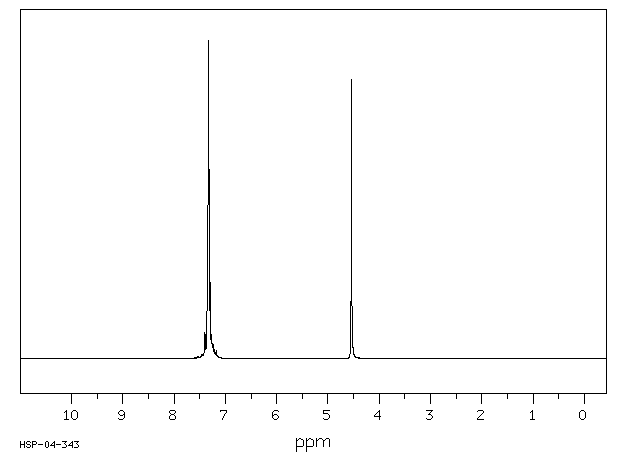

    1H NMR 89.56 MHz
    C14 H14 O 0.04 ml : 0.5 ml CDCl3
    benzyl ether
    ChemicalStructure
        Assign.     Shift(ppm)

      A          7.36 to 7.27
      B             4.540


         Hz     ppm     Int.


        662.63   7.399     81
    658.63   7.355    182
    656.00   7.325   1000
    653.25   7.294    239
    651.25   7.272     76
    649.75   7.255     46
    648.13   7.237     43
    646.38   7.218     27
    642.25   7.172     26
    406.63   4.541    877

in CDCl3

  • 圖譜

CCl4 solution

  • 圖譜

liquid film

  • 圖譜

4880 A,100M,liquid

  • 圖譜

×
