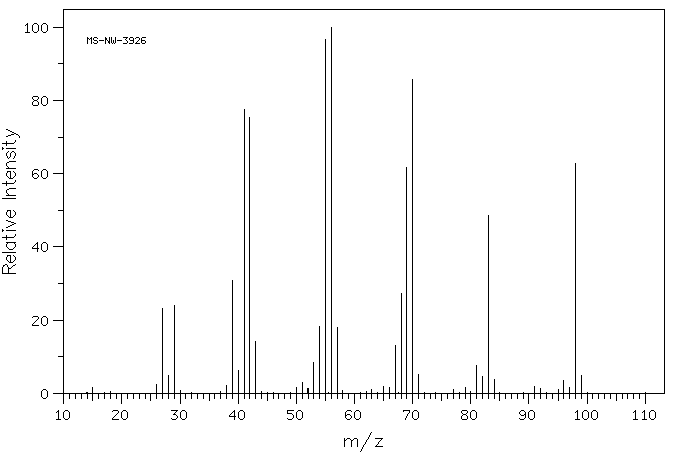

Mass

MS-NW-3926
cycloheptane
C7H14               (Mass of molecular ion:     98)

   Source Temperature: 260 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV

      15.0       1.7
      26.0       2.4
      27.0      23.2
      28.0       4.8
      29.0      23.9
      38.0       2.2
      39.0      30.9
      40.0       6.2
      41.0      77.6
      42.0      75.4
      43.0      14.1
      50.0       1.6
      51.0       2.9
      52.0       1.3
      53.0       8.5
      54.0      18.4
      55.0      96.8
      56.0     100.0
      57.0      17.9
      63.0       1.0
      65.0       2.0
      66.0       1.7
      67.0      13.2
      68.0      27.2
      69.0      61.7
      70.0      85.7
      71.0       5.1
      77.0       1.1
      79.0       1.5
      81.0       7.5
      82.0       4.6
      83.0      48.6
      84.0       3.7
      91.0       2.0
      92.0       1.4
      95.0       1.1
      96.0       3.4
      97.0       1.7
      98.0      62.9
      99.0       5.0

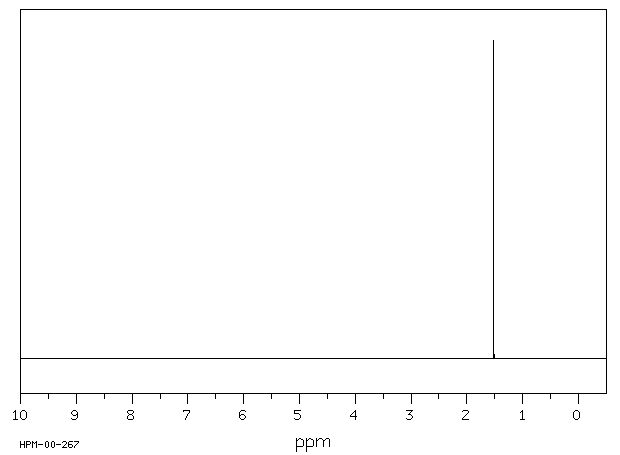

Parameter ppm Hz D(A) 1.523

     Hz     ppm     Int.

    456.90   1.523   1000
