BT-CIC Chemische Eigenschaften,Einsatz,Produktion Methoden

Verwenden

BT-CIC is a highly efficient, ultra-narrow bandgap, NIR absorbing, non-fullerene acceptor, designed to use in high performance organic photovoltaic devices.
A recently reported tandem cell, employing BT-CIC as the non-fullerene acceptor and PCE-10 as donor for the back cell showed an PCE of 15%.

Device performance:
Tandem [Front] (170 nm DTDCPB:C70 + ARC) [Back]PCE-10:BTCIC (1:1.5, 75 nm)
Jsc=13.3 ± 0.3 mA/cm²
Voc=1.59 ± 0.01 V
FF=0.71± 0.01
PCE=15.0% ± 0.3%
ARC:an antireflection coating

BT-CIC Upstream-Materialien And Downstream Produkte

Upstream-Materialien

Downstream Produkte

BT-CIC Anbieter Lieferant Produzent Hersteller Vertrieb H?ndler.

Firmenname	Telefon	E-Mail	Land	Produktkatalog	Edge Rate
Sigma-Aldrich	021-61415566 800-8193336	orderCN@merckgroup.com	China	51395	80
Nanjing Zhiyan Technology Co., Ltd.	15365097539	877997991@qq.com	China	1540	58
Zhengzhou Akem Chemical Co., Ltd	13303867194	3001317055@qq.com	China	9621	58
Henan Weitixi Chemical Technology Co., Ltd	0371-53370800 18037197114	2853031799@qq.com	China	9957	58
Xi'an Kezhan Biotechnology Co., Ltd.	18729005399	78282739@qq.com	China	2302	58
Merck KGaA	21-20338288	ordercn@merckgroup.com	China	6394	58
Beijing Zhongcheng Jinnian Technology Co., Ltd.	18510511586		CHINA	0	58

---

• BT-CIC
• PCE147

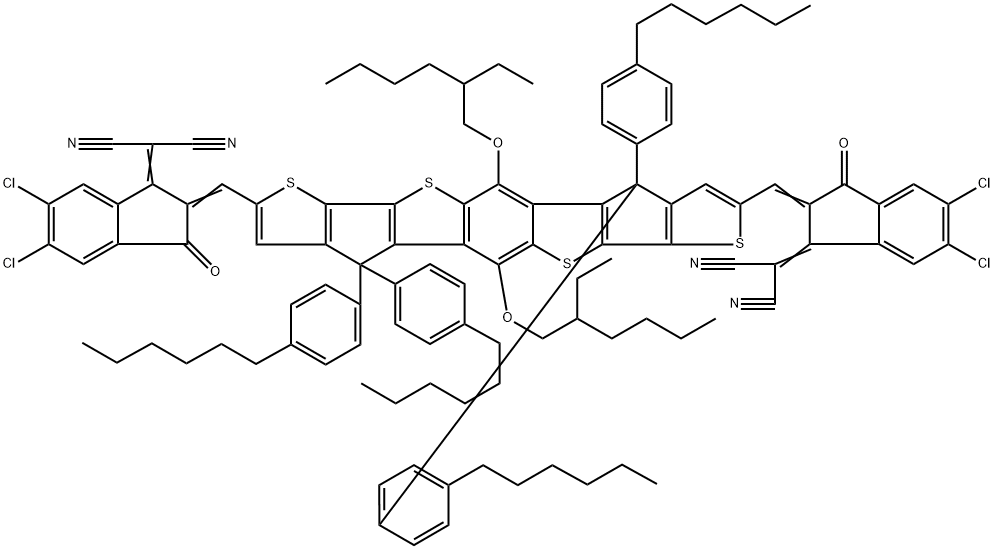

• Propanedinitrile, 2,2'-[[5,11-bis[(2-ethylhexyl)oxy]-4,4,10,10-tetrakis(4-hexylphenyl)-4,10-dihydrothieno[3',2':4,5]cyclopenta[1,2-b]thieno[2'',3'':3',4']cyclopenta[1',2':4,5]thieno[2,3-f][1]benzothiophene-2,8-diyl]bis[methylidyne(5,6-dichloro-3-oxo-1H-indene-2,1(3H)-diylidene)]]bis-
• 2197167-51-2
