optical Fused silica plano convex concave cylindrical lens
optical Fused silica plano convex concave cylindrical lens
RMB
一周

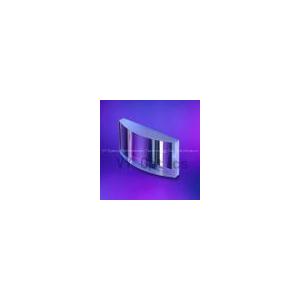

Cylindrical lens is used to correct astigmatism in the eye, and, in rangefinders, to produce astigmatism, stretching a point of light into a line.They are available in either plano concave or plano convex configurations. Plano-Concave Cylindrical lenses have a negative focal length and are used for image reduction or to spread light. Plano-Convex Cylindrical lenses have a positive focal length, which makes them ideal for collecting and focusing light for many imaging applications.
Plano-convex cylindrical lens,plano-concave cylindrical lens,bi-convex cylindrical lens,bi-concave cylindrical lens,meniscus cylindrical lens,long cylindrical lens,special cylindrical lens etc..
Specifiction of our cylinderical lens as follow:
*Material BK7 or other optical materials
*Dimension Tolerance +0.0 -- -0.1mm
*Center Thickness +/-0.1mm
*Focal Length Tolerance+/-1%
*Surface Quality:20/10
*Surface Figure lambda/2 at 633nm on plano side
*Clear Aperture >90%
*Chamfer 0.25mm at 45 degree typical
*Coating Optional
關鍵字： optical cylindrical lens,FS optical cylindrical lens,plano convex spherical lens,plano concave spherical lens
公司簡介
VY Optics Photoelectric Technology Co., Ltd. specialized in manufacturing kinds of optical precision components and lenses. Through many years' hard work and positive innovation, we have became a optical company integrating lens design, production and sales.
Our company has strong production capacity, in possession of the domestically top production line and excellent workers, which mainly are composed of researchers and technicists of the Chinese Academy of Sciences, Changchun Institute of Optics and Fine Mechanics and Changchun University of Science and Technology, they are experienced an
