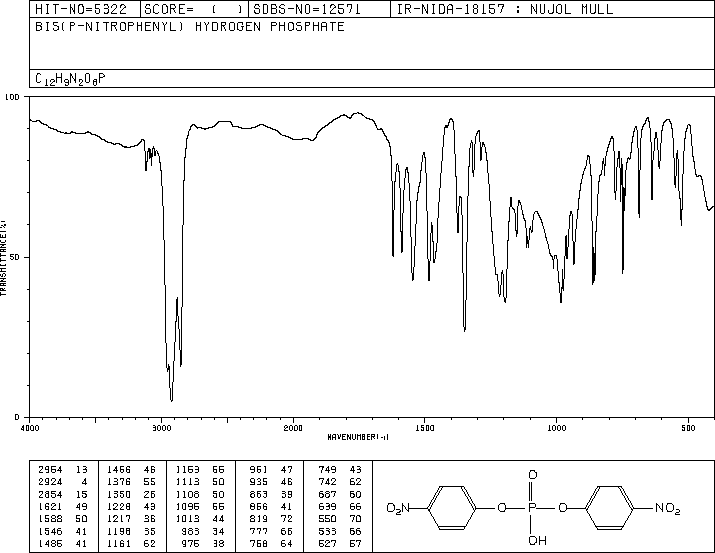

雙(對(duì)硝基苯基)磷酸酯(645-15-8)紅外圖譜(IR1)
分子式:C12H9N2O8P
分子量: 340.18
InChI:InChI=1S/C12H9N2O8P/c15-13(16)9-1-5-11(6-2-9)21-23(19,20)22-12-7-3-10(4-8-12)14(17)18/h1-8H,(H,19,20)
InChIKey: MHSVUSZEHNVFKW-UHFFFAOYSA-N
Smiles:P(O)(OC1=CC=C([N+]([O-])=O)C=C1)(OC1=CC=C([N+]([O-])=O)C=C1)=O
-

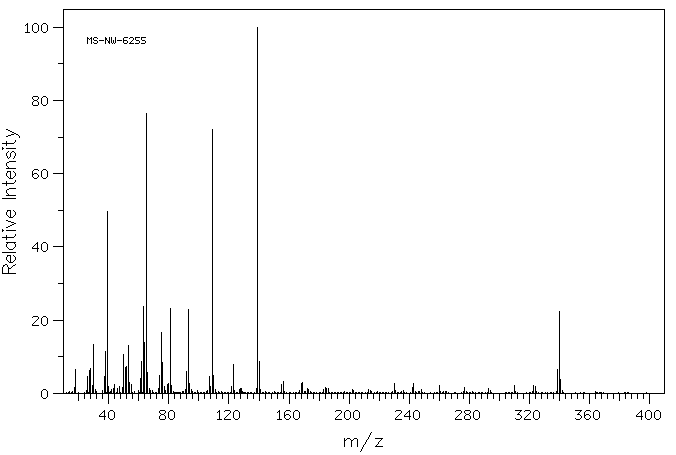

Mass
MS-NW-6255
bis(p-nitrophenyl) hydrogen phosphate
C12H9N2O8P (Mass of molecular ion: 340)
Source Temperature: 230 °C
Sample Temperature: 210 °C
Direct, 75 eV
17.0 1.7
18.0 6.5
26.0 4.6
27.0 6.3
28.0 6.8
29.0 2.1
30.0 13.3
31.0 1.0
37.0 4.6
38.0 11.5
39.0 49.7
40.0 1.8
42.0 1.1
43.0 1.2
44.0 2.5
46.0 1.2
47.0 1.9
49.0 1.5
50.0 10.6
51.0 7.1
52.0 7.4
53.0 13.2
54.0 3.0
55.0 2.5
61.0 4.1
62.0 8.7
63.0 23.7
64.0 14.0
65.0 76.4
66.0 5.6
67.0 1.2
73.0 1.2
74.0 5.0
75.0 16.5
76.0 8.4
77.0 1.8
79.0 2.4
80.0 2.6
81.0 23.2
82.0 2.2
91.0 1.1
92.0 6.0
93.0 23.0
94.0 2.7
95.0 1.0
107.0 4.7
108.0 1.8
109.0 72.2
110.0 5.0
111.0 1.1
122.0 1.9
123.0 7.8
127.0 1.0
128.0 1.3
138.0 1.3
139.0 100.0
140.0 8.6
141.0 1.1
155.0 2.4
156.0 3.3
168.0 2.6
169.0 3.0
172.0 1.4
173.0 1.0
183.0 1.0
184.0 1.5
185.0 1.3
186.0 1.2
202.0 1.1
213.0 1.1
230.0 2.8
242.0 1.6
243.0 2.7
248.0 1.1
260.0 2.1
277.0 1.5
293.0 1.3
310.0 2.2
323.0 2.1
324.0 2.0
339.0 6.4
340.0 22.4
341.0 3.8
