527-60-6

2,4,6-三甲酚(527-60-6)核磁圖(13CNMR)

產(chǎn)品名稱(chēng):2,4,6-三甲酚

CAS:527-60-6

分子式:C9H12O

分子量: 136.19

InChI:InChI=1S/C9H12O/c1-6-4-7(2)9(10)8(3)5-6/h4-5,10H,1-3H3

InChIKey: BPRYUXCVCCNUFE-UHFFFAOYSA-N

Smiles:C1(O)=C(C)C=C(C)C=C1C

  • 圖譜
    Mass

    MS-NW-8716
2,4,6-trimethylphenol
C9H12O              (Mass of molecular ion:    136)


       Source Temperature: 260 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV


          27.0       2.8
      29.0       1.3
      39.0       6.7
      40.0       1.2
      41.0       4.4
      43.0       2.8
      50.0       1.1
      51.0       4.0
      52.0       1.6
      53.0       2.8
      55.0       1.4
      57.5       1.0
      63.0       1.9
      65.0       5.1
      66.0       2.2
      67.0       4.8
      68.0       1.7
      77.0       9.5
      78.0       2.0
      79.0       5.2
      91.0      16.0
      92.0       2.3
      93.0       7.4
      94.0       1.1
     103.0       3.6
     105.0       2.3
     107.0       3.3
     108.0       1.7
     115.0       2.3
     117.0       5.0
     118.0       1.8
     119.0       2.1
     121.0      85.5
     122.0       7.9
     135.0      31.1
     136.0     100.0
     137.0       9.8

90 MHz in CDCl3

  • 圖譜

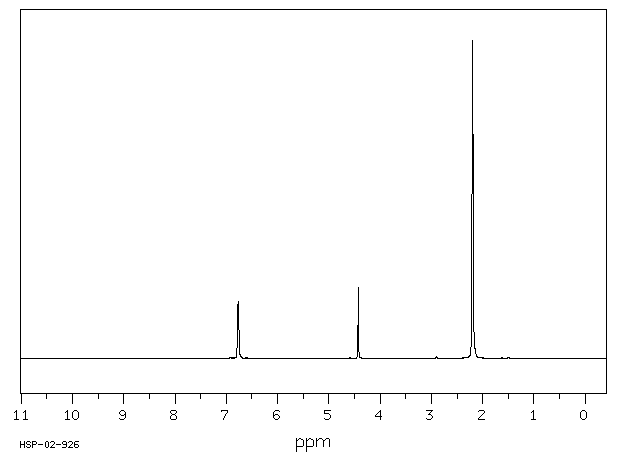

    1H NMR 89.56 MHz
    C9 H12 O 0.039 g : 0.5 ml CDCl3
    2,4,6-trimethylphenol
    ChemicalStructure
        Assign.     Shift(ppm)

      A             6.77
      B             4.42
      C             2.19


         Hz     ppm     Int.


        606.25   6.770    178
    605.75   6.764    174
    396.25   4.425    222
    196.31   2.192   1000

in CDCl3

  • 圖譜

CCl4 solution

  • 圖譜

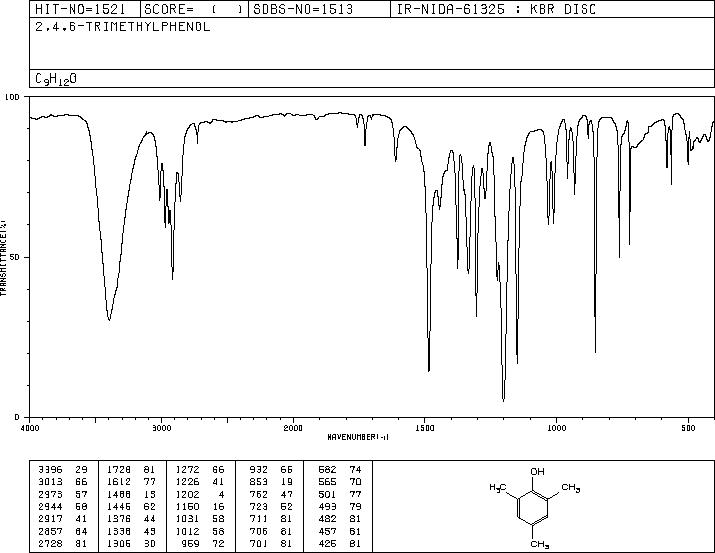

KBr disc

  • 圖譜

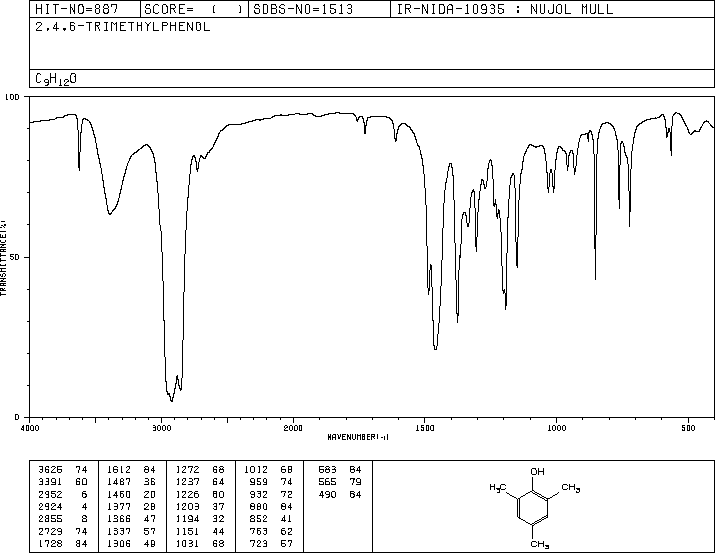

nujol mull

  • 圖譜

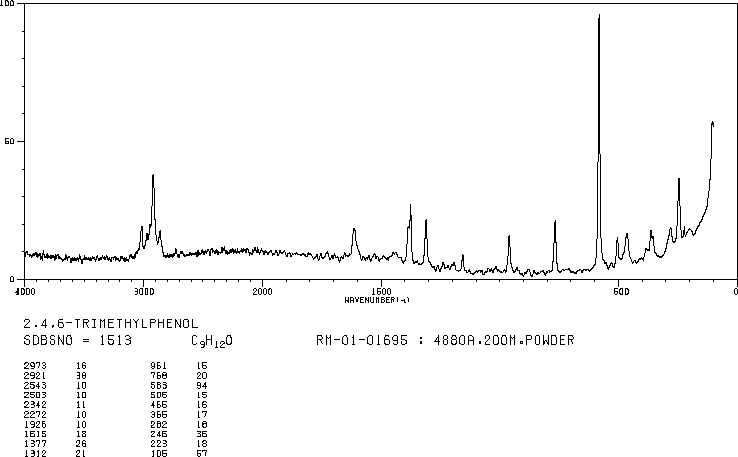

4880 A,200 M,powder

  • 圖譜

OXIDATION WITH CERIC SULPHATE IN H2SO4

  • 圖譜

×
