返回ChemicalBook首頁>CAS數(shù)據(jù)庫列表>394-33-2更多圖譜> 2-硝基-4-氟苯酚(394-33-2)核磁圖(1HNMR)

394-33-2

2-硝基-4-氟苯酚(394-33-2)核磁圖(1HNMR)

產(chǎn)品名稱:2-硝基-4-氟苯酚

CAS:394-33-2

分子式:C6H4FNO3

分子量: 157.1

InChI:InChI=1S/C6H4FNO3/c7-4-1-2-6(9)5(3-4)8(10)11/h1-3,9H

InChIKey: ZHRLVDHMIJDWSS-UHFFFAOYSA-N

Smiles:C1(O)=CC=C(F)C=C1[N+]([O-])=O

  • 圖譜

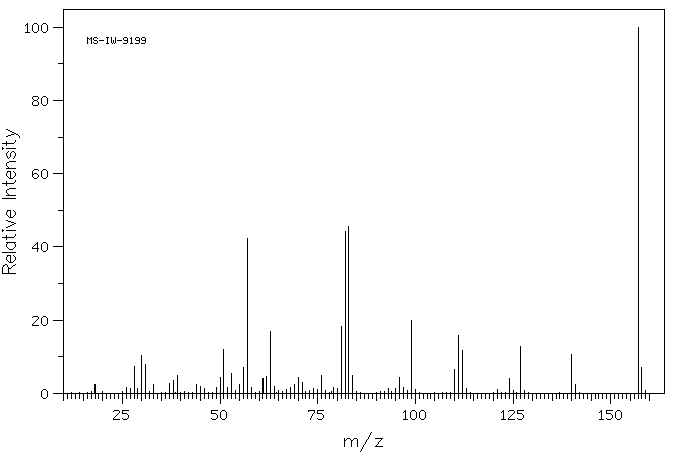

    Mass

    MS-IW-9199
    4-fluoro-2-nitrophenol
    C6H4FNO3            (Mass of molecular ion:    157)


       Source Temperature: 230 °C
       Sample Temperature: 150 °C
       Reservoir, 75 eV


          18.0       2.4
          26.0       1.7
          27.0       1.3
          28.0       7.4
          29.0       1.4
          30.0      10.3
          31.0       8.0
          33.0       2.3
          37.0       2.8
          38.0       3.6
          39.0       4.8
          44.0       2.5
          45.0       2.0
          46.0       1.2
          49.0       1.6
          50.0       4.3
          51.0      11.9
          52.0       1.5
          53.0       5.3
          55.0       2.4
          56.0       7.0
          57.0      42.3
          58.0       1.7
          61.0       4.0
          62.0       4.5
          63.0      16.9
          64.0       2.0
          67.0       1.0
          68.0       1.5
          69.0       2.3
          70.0       4.2
          71.0       3.0
          74.0       1.2
          75.0       1.0
          76.0       4.8
          79.0       1.5
          80.0       1.4
          81.0      18.4
          82.0      44.2
          83.0      45.6
          84.0       4.8
          93.0       1.3
          95.0       1.3
          96.0       4.4
          97.0       1.5
          99.0      19.9
         100.0       1.1
         110.0       6.5
         111.0      15.7
         112.0      11.6
         113.0       1.2
         121.0       1.0
         124.0       4.1
         127.0      12.9
         140.0      10.5
         141.0       2.3
         157.0     100.0
         158.0       7.2


400 MHz in CDCl3

  • 圖譜

    1H NMR 399.65 MHz
    C6 H4 F N O3 0.036 g : 0.5 ml CDCl3
    4-fluoro-2-nitrophenol
    ChemicalStructure
        Assign.     Shift(ppm)
    A 10.4 B 7.818 C 7.373 D 7.173

         Hz     ppm     Int.


       4142.30  10.365   1000
       3130.19   7.833    246
       3126.98   7.825    252
       3121.95   7.812    249
       3118.90   7.805    250
       2957.00   7.399    135
       2953.80   7.391    129
       2951.66   7.386     21
       2949.83   7.382    143
       2947.69   7.376    186
       2946.62   7.374    159
       2944.64   7.369    172
       2940.52   7.358    172
       2937.32   7.350    163
       2873.08   7.189    295
       2868.50   7.178    303
       2863.77   7.166    235
       2859.19   7.155    239


in CDCl3

  • 圖譜

KBr disc

  • 圖譜

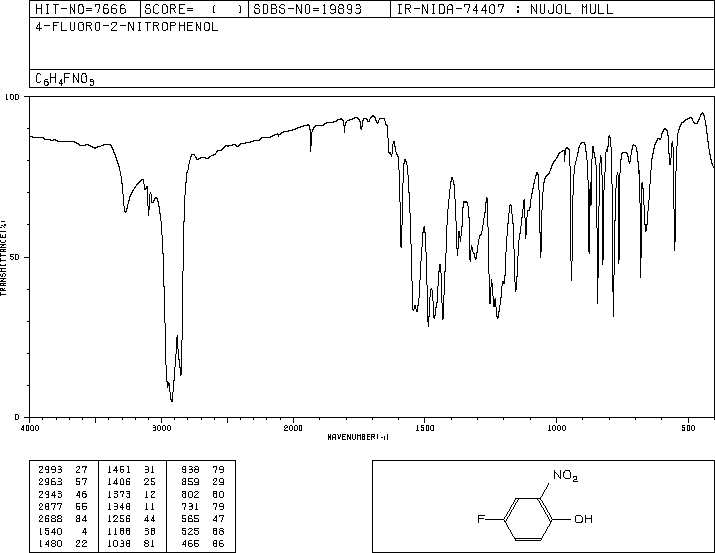

nujol mull

  • 圖譜

  • 圖譜

×
