返回ChemicalBook首頁>CAS數(shù)據(jù)庫列表>193-39-5更多圖譜> 茚并(1,2,3-CD)比(193-39-5)核磁圖(13CNMR)

193-39-5

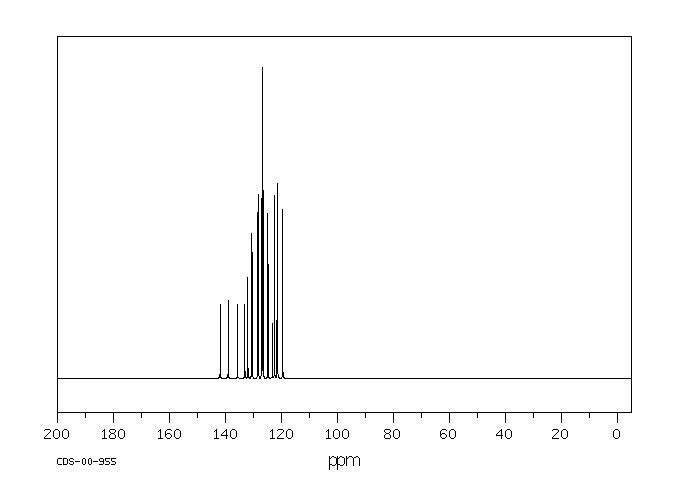

茚并(1,2,3-CD)比(193-39-5)核磁圖(13CNMR)

產(chǎn)品名稱:茚并(1,2,3-CD)比

CAS:193-39-5

分子式:C22H12

分子量: 276.33

InChI:InChI=1S/C22H12/c1-2-7-17-16(6-1)18-11-10-14-9-8-13-4-3-5-15-12-19(17)22(18)21(14)20(13)15/h1-12H

InChIKey: SXQBHARYMNFBPS-UHFFFAOYSA-N

Smiles:C1C2C3=C4C(=CC=2)C=CC=C4C=C2C4=C(C(=C23)C=1)C=CC=C4

400 MHz in CDCl3

  • 圖譜

    1H NMR 399.65 MHz
    C22 H12 1.0 mg : 0.5 ml CDCl3
    indeno(1,2,3-cd)pyrene
    ChemicalStructure
        Assign.     Shift(ppm)

      A             8.602
      B             8.432
      C     *1      8.387
      D             8.28
      E     *1      8.26
      F     *1      8.15
      G             8.14
      J     *1      8.09
      K             8.066
      L             8.05
      M     *2      7.488
      N     *2      7.448


         Hz     ppm     Int.


       3437.62   8.602   1000
   3374.15   8.443    355
   3370.85   8.435     56
   3370.12   8.433     54
   3369.02   8.430     59
   3366.33   8.424    400
   3363.28   8.416     56
   3362.55   8.414     45
   3362.06   8.413     41
   3361.45   8.411     47
   3360.96   8.410     37
   3359.99   8.408     44
   3356.32   8.399    566
   3353.64   8.392     61
   3352.66   8.389     57
   3352.42   8.389     57
   3351.93   8.388     57
   3351.44   8.386     51
   3348.51   8.379    733
   3345.09   8.371     51
   3344.12   8.368     34
   3311.65   8.287    407
   3309.08   8.280     62
   3308.23   8.278     61
   3307.86   8.277     64
   3307.37   8.276     66
   3306.64   8.274     69
   3303.83   8.267    561
   3302.61   8.264    679
   3300.05   8.258    100
   3299.32   8.256     78
   3298.58   8.254     71
   3298.10   8.253     64
   3297.61   8.252     65
   3294.80   8.245    473
   3291.26   8.236     43
   3290.41   8.234     37
   3290.04   8.233     35
   3289.55   8.232     35
   3264.28   8.168     35
   3261.84   8.162    411
   3258.54   8.154    341
   3257.20   8.151    276
   3252.69   8.139    902
   3250.73   8.134    407
   3246.34   8.123     58
   3245.73   8.122     45
   3245.36   8.121     49
   3244.51   8.119     41
   3244.14   8.118     38
   3243.77   8.117     40
   3243.04   8.115     36
   3242.19   8.113     37
   3241.33   8.111     37
   3240.97   8.110     40
   3237.30   8.101    838
   3234.62   8.094     91
   3233.40   8.091     72
   3231.08   8.085    427
   3228.27   8.078    454
   3225.46   8.071     86
   3223.39   8.066    712
   3219.36   8.056    336
   3218.75   8.054    357
   3217.90   8.052    391
   3215.70   8.047    362
   3213.99   8.043     85
   3212.28   8.038    308
   3211.43   8.036    374
   3210.82   8.035    369
   3001.59   7.511    146
   3000.37   7.508    165
   2998.78   7.504     37
   2998.41   7.503     36
   2996.95   7.499     34
   2996.46   7.498     42
   2994.14   7.492    373
   2992.92   7.489    405
   2990.60   7.484     54
   2990.36   7.483     54
   2990.11   7.482     54
   2989.38   7.480     49
   2986.94   7.474    320
   2985.47   7.471    295
   2982.91   7.464    315
   2981.57   7.461    333
   2978.88   7.454     56
   2978.27   7.453     48
   2977.66   7.451     50
   2975.59   7.446    393
   2974.37   7.443    361
   2972.05   7.437     48
   2971.44   7.436     42
   2970.34   7.433     34
   2968.14   7.427    155
   2966.92   7.424    133

in CDCl3
