4-Aminobutyric acid(56-12-2) ¹H NMR

Product Name4-Aminobutyric acid

CAS 56-12-2

Molecular FormulaC4H9NO2

Molecular Weight103.12

InChIInChI=1S/C4H9NO2/c5-3-1-2-4(6)7/h1-3,5H2,(H,6,7)

InChIKey BTCSSZJGUNDROE-UHFFFAOYSA-N

SmilesC(O)(=O)CCCN

Request For Quotation

4-Aminobutyric acid(56-12-2) <sup>1</sup>H NMR
Mass

MS-NW-6199
4-amino-n-butyric acid
C4H9NO2             (Mass of molecular ion:    103)

   Source Temperature: 160 °C
   Sample Temperature: 110 °C
   Direct, 75 eV

      17.0       1.6
      18.0       6.9
      26.0       1.7
      27.0       4.5
      28.0      12.5
      29.0       3.3
      30.0     100.0
      31.0       2.2
      39.0       2.7
      40.0       1.8
      41.0       9.8
      42.0       8.9
      43.0      14.0
      44.0       9.8
      45.0       2.2
      55.0       1.3
      56.0       4.5
      57.0       1.1
      69.0       1.4
      84.0       4.5
      85.0      11.7
      86.0       1.5
     103.0       5.7

90 MHz in D2O

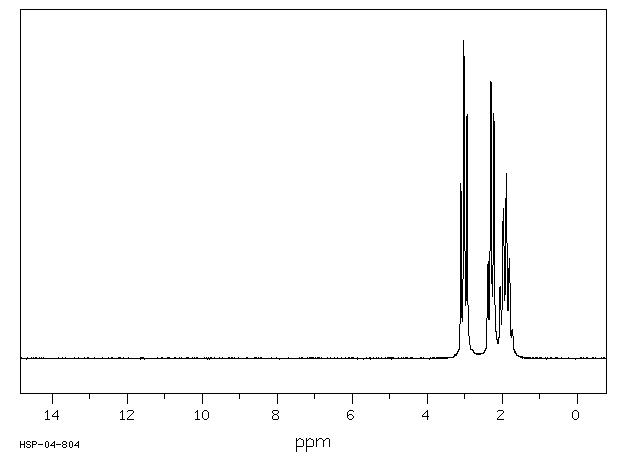

4-Aminobutyric acid(56-12-2) <sup>1</sup>H NMR

¹H NMR	89.56 MHz
C₄ H₉ N O₂	0.046 g : 0.5 ml D₂O
4-amino-N-butyric acid

    Assign.     Shift(ppm)

      A             3.015
      B             2.280
      C             1.906

     SOLVENT PEAK REMOVED

     Hz     ppm     Int.

    278.05   3.105    550
    270.87   3.025   1000
    263.35   2.941    769
    214.56   2.396    297
    213.02   2.379    304
    206.27   2.304    872
    199.78   2.231    770
    199.18   2.224    761
    184.57   2.061    226
    183.12   2.045    214
    176.54   1.972    471
    169.62   1.894    582
    162.61   1.816    314
    161.24   1.801    261
    155.77   1.740     91
    153.98   1.720     77

in D2O
