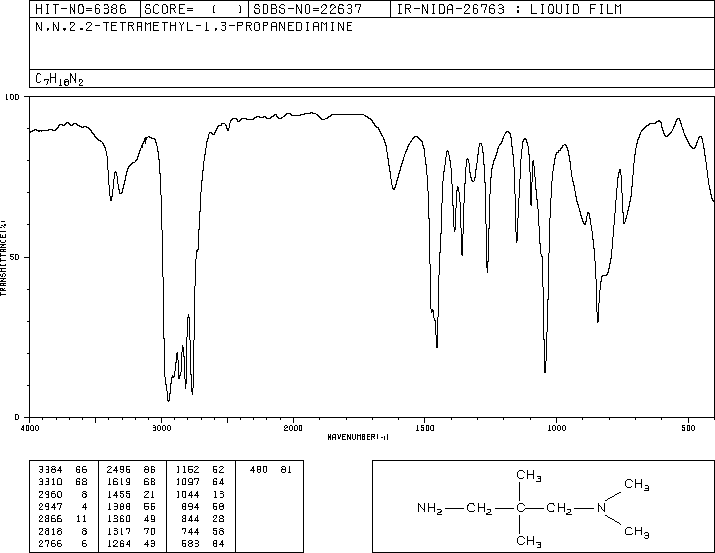

N,N,2,2-TETRAMETHYL-1,3-PROPANEDIAMINE(53369-71-4) IR1

Product NameN,N,2,2-TETRAMETHYL-1,3-PROPANEDIAMINE

CAS 53369-71-4

Molecular FormulaC7H18N2

Molecular Weight130.23

InChIInChI=1S/C7H18N2/c1-7(2,5-8)6-9(3)4/h5-6,8H2,1-4H3

InChIKey ULDIVZQLPBUHAG-UHFFFAOYSA-N

SmilesC(N(C)C)C(C)(C)CN

Request For Quotation

N,N,2,2-TETRAMETHYL-1,3-PROPANEDIAMINE(53369-71-4) IR1
Mass

MS-IW-0974
N,N,2,2-tetramethyl-1,3-propanediamine
C7H18N2             (Mass of molecular ion:    130)

   Source Temperature: 230 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      28.0       1.3
      29.0       1.1
      30.0       6.2
      41.0       1.2
      42.0       3.4
      43.0       1.1
      44.0       3.6
      45.0       1.4
      46.0       2.1
      56.0       1.3
      57.0       1.0
      58.0     100.0
      59.0       4.5
      70.0       2.1
      85.0       3.4
      86.0       1.2
     113.0       1.5
     130.0       3.0

N,N,2,2-TETRAMETHYL-1,3-PROPANEDIAMINE(53369-71-4) IR1

    Assign.     Shift(ppm)

      A             2.521
      B             2.281
      C             2.129
      D             1.23
      E             0.861

Spectral Code: 1H NMR : 90 MHz in CDCl3

N,N,2,2-TETRAMETHYL-1,3-PROPANEDIAMINE(53369-71-4) IR1

       ppm   Int.  Assign.

       68.82   428      1
       51.57   416      2
       48.72  1000      3
       36.63   339      4
       23.98   935      5

Spectral Code: 13C NMR : in CDCl3

liquid film
