Identification | Back Directory | [Name]
4-[4-(1-Hydroxyethyl)-2-Methoxy-5-nitrophenoxy]butanoic Acid | [CAS]
175281-76-2 | [Synonyms]
4-(4-(1-Hydroxyethyl) HYDROXYETHYL PHOTOLINKER -2-methoxy-5-nitrophenoxy) HYDROXYETHYL PHOTOLINKER 1 G Hydroxyethyl photolinker Novabiochem 4-[4-(1-Hydroxyethyl)-2-methoxy-5-nitrophen 4-[4-(1-HYDROXYETHYL)-2-METHOXY-5-NITROPHENOXY)BUTANOIC ACID 4-(4-(1-HYDROXYETHYL)-2-METHOXY-5-NITRO-PHENOXY)BUTYRIC ACID Butanoic acid, 4-[4-(1-hydroxyethyl)-2-methoxy-5-nitrophenoxy]- 4-(4-(1-Hydroxyethyl)-2-methoxy-5-nitrophenoxy)butyric acid≥ 98% (HPLC) 4-[4-(1-Hydroxyethyl)-2-Methoxy-5-nitrophenoxy]butyric acid >=98.0% (HPLC) | [Molecular Formula]
C13H17NO7 | [MDL Number]
MFCD01318869 | [MOL File]
175281-76-2.mol | [Molecular Weight]
299.28 |
Chemical Properties | Back Directory | [Melting point ]
163-166 °C
| [Boiling point ]
540.1±50.0 °C(Predicted) | [density ]
1.333±0.06 g/cm3(Predicted) | [storage temp. ]
Store below +30°C. | [solubility ]
DMSO (Sparingly), Methanol (Slightly) | [form ]
Solid | [pka]
4.54±0.10(Predicted) | [color ]
Yellow | [Optical Rotation]
0.3°(C=0.01g/ml DMF) | [BRN ]
7717635 |
Hazard Information | Back Directory | [Chemical Properties]
Yellow Solid | [Uses]
4-[4-(1-Hydroxyethyl)-2-Methoxy-5-nitrophenoxy]butanoic Acid is used for preparation of photolabile linking groups for use in solid phase synthesis.
| [Uses]
It is used as a photolabile linker for the preparation of carboxylic acids. | [reaction suitability]
reagent type: cross-linking reagent | [Synthesis]

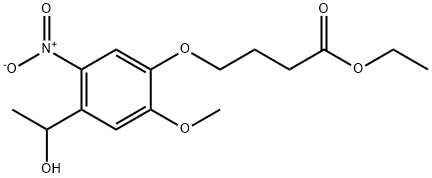

General procedure for the synthesis of 4-[4-(1-hydroxyethyl)-2-methoxy-5-nitrophenoxy]butanoic acid from ethyl 4-[4-(1-hydroxyethyl)-2-methoxy-5-nitrophenoxy]butanoate: ethyl 4-[4-(1-hydroxyethyl)-2-methoxy-5-nitrophenoxy]butanoate (8.53 g) was dissolved in a mixture of trifluoroacetic acid (10 mL) and water ( 100 mL) in a mixed solvent, heated to 80 °C and maintained for 18 hours. The progress of the reaction was monitored by 1H NMR and the conversion was found to be incomplete. Subsequently, additional trifluoroacetic acid (5 mL) was added and the reaction was continued for 24 hours. Upon completion of the reaction, the mixture was cooled to room temperature and a solid precipitate was precipitated, which was collected by filtration. Finally, the resulting solid was freeze-dried to afford the target product 4-[4-(1-hydroxyethyl)-2-methoxy-5-nitrophenoxy]butanoic acid (8.53 g, 86% yield) as a yellow powder.1H NMR (δ, ppm, acetone-d6): 1.53 (d, CHCH3), 2.12 (p, ArOCH2CH2CH2), 2.55 (t , ArOCH2CH2CH2), 4.03 (s, ArOCH3), 4.16 (m, ArOCH2), 5.47 (q, CHCH3), 7.47 (d, neighboring aromatic H of ArOCH2), 7.59 (s, neighboring aromatic H of ArOCH3). | [References]
[1] Patent: US8343710, 2013, B1. Location in patent: Page/Page column 14; 16 [2] Patent: WO2018/57941, 2018, A1. Location in patent: Page/Page column 39; 43; 44 [3] Soft Matter, 2011, vol. 7, # 10, p. 4881 - 4887 [4] Patent: WO2014/197991, 2014, A1. Location in patent: Paragraph 00199-00200 [5] Patent: US2016/370376, 2016, A1. Location in patent: Paragraph 0120 |
|
